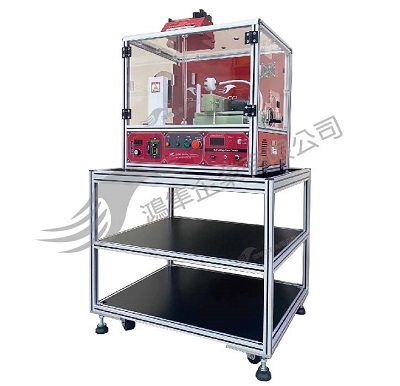

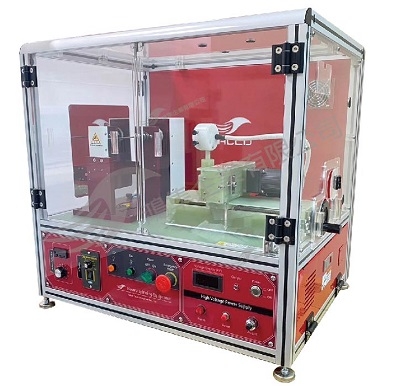

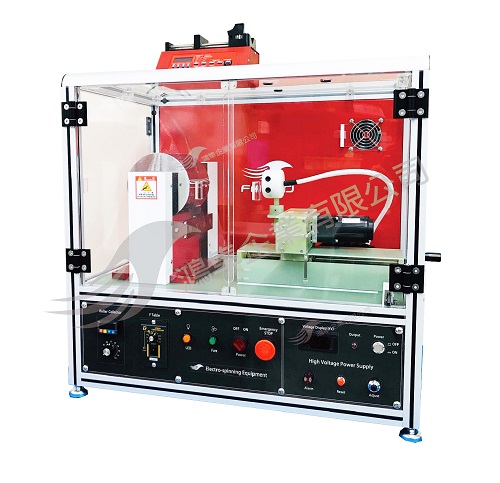

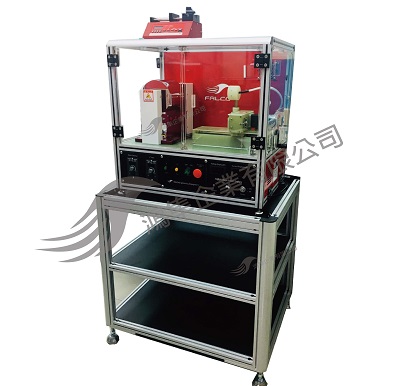

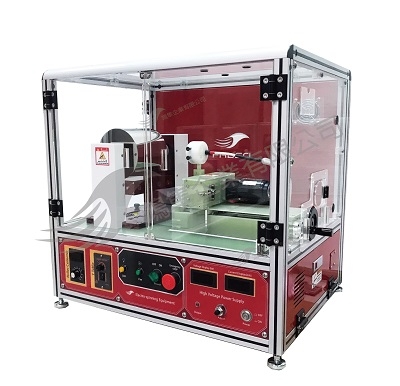

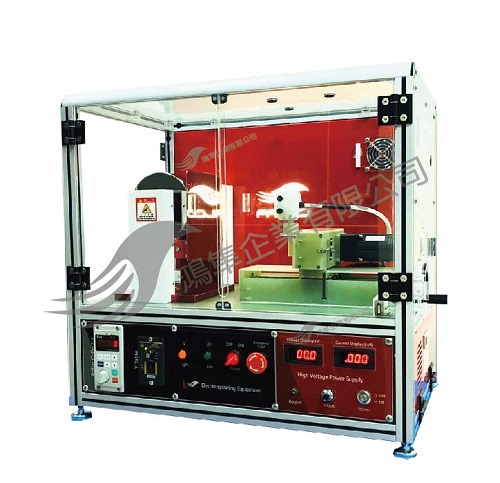

  • FES-COS 經濟型電紡絲機

FES-COS Electro-spinning equipment
  • 升級內容

升級1:環境溫度可控制,溫度範圍30~45℃,溫度均勻度±1℃

升級2:環境濕度控制,40~60%(於25度下)

升級3:背光源設置,可即時觀察紡絲情形



  • 特點
經濟型電紡絲機為進階款機型,多樣的擴充性為其特點,可符合多樣化的研究主題,如電紡、電噴、薄膜狀、管狀、條狀、順向、硬性基材、 中空纖維、均勻膜
The economic-type ES machine is more advanced and featured with its expansibility for making versatile nanofibrous mats, such as nonwoven fibers, aligned fibers, hollow nanofibers and so on.



  • 規格說明 Specification
外觀尺寸
Appearance dimension
720mm(L)X460mm(D)X650mm(H)
機台重量 Weight   約60kg
電源需求 Power supply voltage   110V/60Hz
注料範圍
Syringe injection speed/volume
0.73μl/hr~1257ml/hr (可用針筒範圍 : 1~60ml)(syringe:1-60ml)
紡絲電壓 Voltage             30kV /40kV/ 50kV(選配(optional)
紡絲機構
X軸手動移動行程範圍200mm (手動)
Y軸自動擺動行程範圍150mm(速度可調)
X axis: working distance ranging from 0-200 mm (manual)
Y axis: working distance ranging from 0-150 mm
(automatic movement with adjustable scanning rate)
收集面積 Collector area   450mmx150mm
安全設計 Safety design
溶劑排除與斷電保護設計
automatic power shutoff system and exhaust ventilation device for solvent vapor
環境控制 (選配) 溫度:max 35±2°C/濕度:50%以下
紡絲單元 Standard spinneret unit
不銹鋼針組、針頭轉接套組、特製紡絲頭套件
Stainless needle, Connector between spinneret and syringe
收集單元 Standard collector   滾筒式 、平板式 Plate collector, Rotating drum collector

  • 可選擇配件 Optional accessory
紡絲單元
Standard spinneret unit

同軸針、並排針、加熱針、矩陣式多針組件、針筒防護套件、訂製
Sheath-core spinneret, Multi-needle spinneret, Needle-heating unit, Spinneret cover and Customization
收集單元
Standard collector
圓棒式、圓盤式、細胞培養式、訂製
Disc collector, Rotating tube collector, Collector designed for cell culture and Customization.Disc collector, Rotating tube collector, Collector designed for cell culture and Customization
