【生醫】(回顧文)電紡絲用在人造血管
最新消息 - 2018/5/18
小直徑血管(SDBV)發生內膜增生和動脈瘤擴張而造成的血栓，要解決此問題是一個艱鉅的任務。
靜電技術作為一種有前途的組織工程方法，可以製造聚合物纖維支架滿足對天然血管和細胞外基
質（ECM）構建的要求促進細胞的粘附，增殖和生長。在這篇綜述中，總結了這些聚合物用於製
造SDBV並將其分為三類，合成類聚合物，天然聚合物和雜化聚合物。
5-1(1).png)

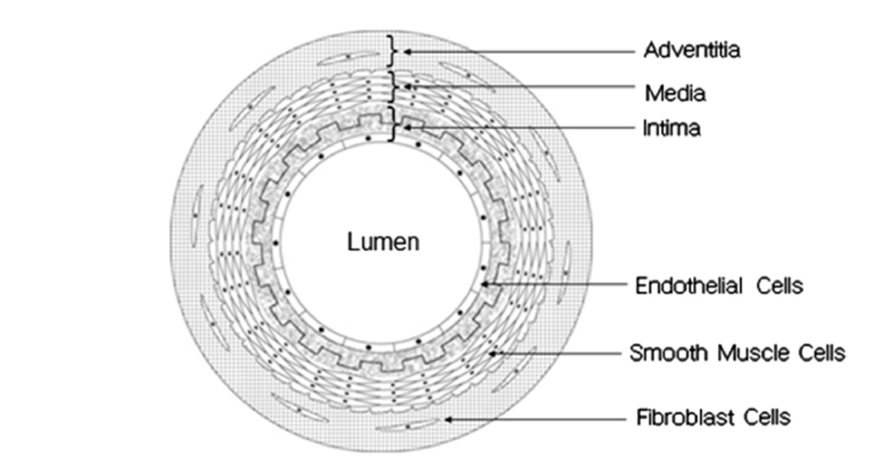

Figure 1. Schematic illustration of blood vessel structure (reprinted from Ref. [16]).
5-2.png)

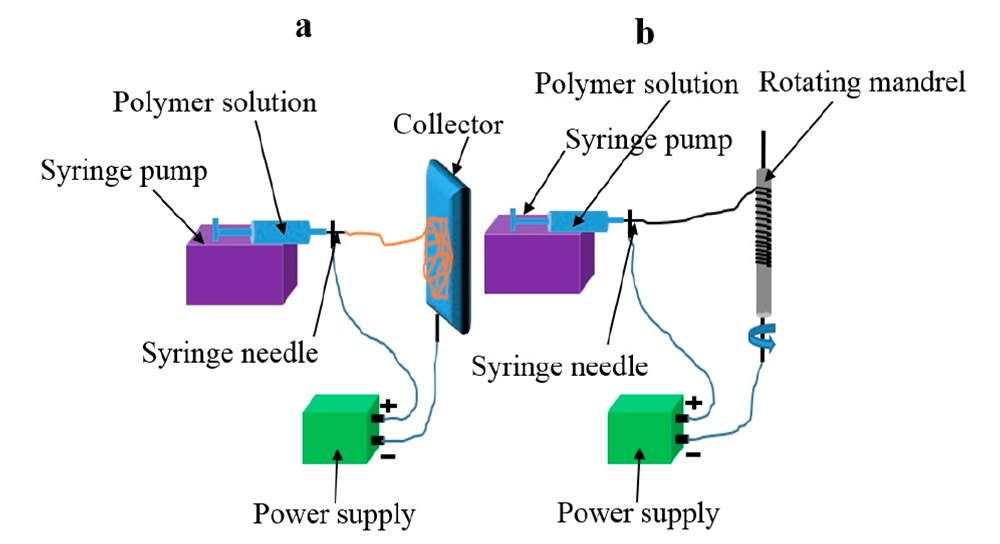

Figure 2. Electrospinning setups: (a) grounded flat collector is used to collect fibers; (b) tubular
rotating mandrel is used to collect fibers to shape blood vessels.
5-3.png)
Figure 3. SEM photographs of (a) synthetic poly(ε-caprolactone) (PCL)/Poly(l-lactic acid) (PLA)
blood vessel of 6 mm diameter, (b) the randomly oriented PCL fiber inner layer, (c) the aligned
PLA fiber outer layer (reprinted from Ref. [34]).
5-4.png)

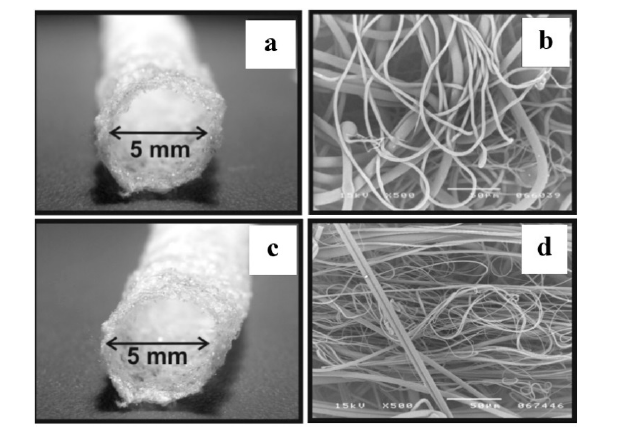

Figure 5. Tubular blood vessels fabricated by melt electrospinning: (a,b) polypropylene (Moplen
462R PP); (c,d) polylactide (PLA 4060D) (reprinted from Ref. [42]).
5-5.png)
Figure 9. Expression of transgene eNOS protein in both MSCs seeded blood vessel (a,b) and
eNOS-MSCs seeded blood vessel (c,d) (reprinted from Ref. [84]).
5-6.png)
Figure 11. Investigation of explanted (a) PCL graft and (b) PCL-arginine-glycine-aspartic acid
(RGD) graft by stereomicroscope and (c,d) cross-section staining after four weeks of implantation.
Acute thrombosis was observed in the lumen of PCL (reprinted from Ref. [89]).
5-7.png)
5-8.png)
Ref. “Electrospun Fibrous Scaffolds for Small-Diameter Blood Vessels: A Review”(2018) Membranes
